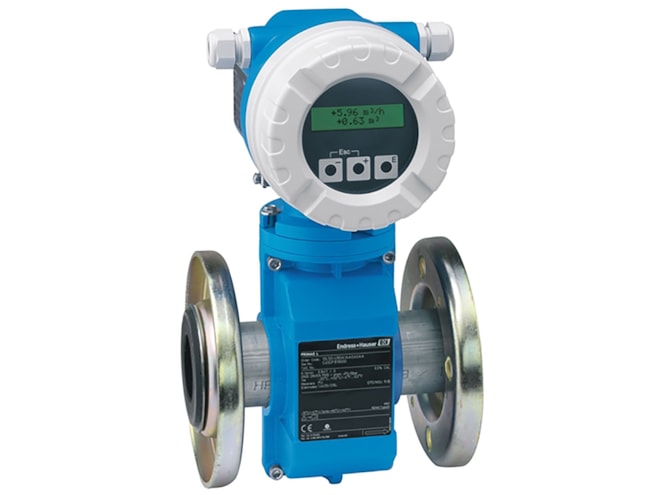

Proline Promag 10L Electromagnetic Flow Meter

Features

• 0.03 to 33 ft/s (0.01 to 10 m/s) measuring range for liquids
• Over 1000:1 operable flow range
• Medium temperature range:
  • Hard rubber: 32 to 176°F (0 to 80°C)
  • Polyurethane: –4 to 122°F (–20 to 50°C)
  • PTFE: –4 to 194°F (–20 to 90°C)
• PN 16, Class 150 maximum process pressure
• Accuracy
  • Current: ±5 μA
  • Pulse: ±0.5% o.r. ±0.08 in/s (±0.5% o.r. ±2 mm/s)
• Max ±0.2% o.r. ±0.08 in/s (±0.2% o.r. ±2 mm/s) repeatability
• ≥50 μS/cm minimum conductivity
• IP66/67, NEMA 4X standard
• IP68, NEMA 6P optional for sensor for remote version
• IEC, EN, NAMUR
