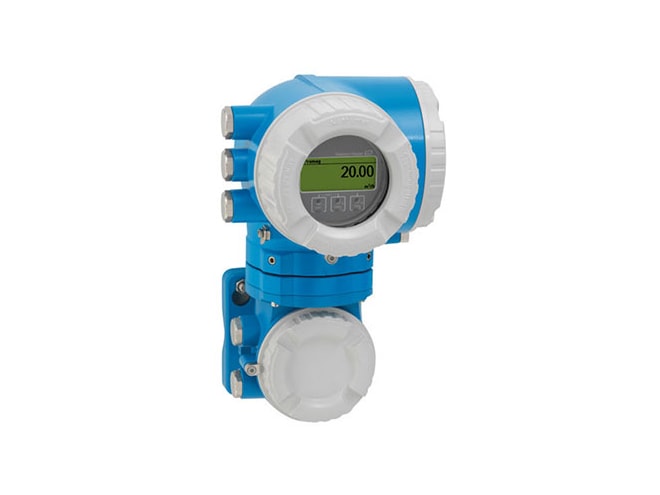

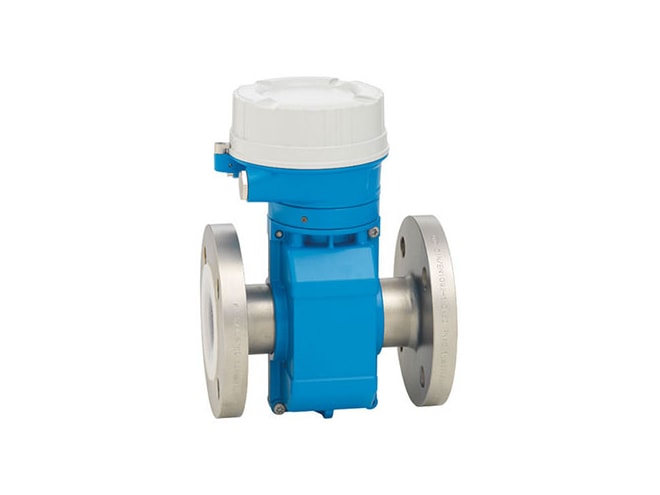

Proline Promag P 500 Electromagnetic Flow Meter

Features

• Measures volume flow, conductivity & mass flow
• DN 15 to 600 (1/2 to 24 in) nominal diameter range
• Media temperature ranges:
  • PFA liner: –4 to 302°F (–20 to 150°C)
  • PFA high-temp liner: –4 to 356°F (–20 to 180°C)
  • PTFE liner: –40 to 266°F (–40 to 130°C)
• 1 gal/min to 44,000 gal/min measuring range
• Up to 4 outputs:
  • 4-20 mA HART (active/passive)
  • 4-20 mA WirelessHART
  • 4-20 mA (active/passive)
  • Pulse/frequency/switch output (active/passive)
  • Double pulse output (active/passive)
  • Relay output
• Maximum measured error:
  • Volume flow (standard): ±0.5%
  • Volume flow (optional): ±0.2%
• PN 40, Class 300, 20K maximum process pressure
• No pressure loss due to cross-section constriction
• 4-line backlit display with touch control & WLAN access
• HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA digital communications
• IP66/67, Type 4X standard enclosure
  • IP69 (optional for remote sensor)
• ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC (options)
• Heartbeat Technology (optional)
• Predecessors: Promag 50E, Promag 50P, Promag 51P, Promag 53E, Promag 53P
